7-mode full Netcom 4G wireless router module

Smart home equipment/Internet of things control/industrial control/remote camera/outdoor internet/network control equipment/flow internet

product features

PRODUCT FEATURES

3G/4G dial-up Internet, DHCP/STATIC, IP/PPOE

Up to 300Mbps WiFi transmission

4G transmission rate up to 150Mbps

Network interface: 5 100M Ethernet ports

Up to 32 terminals can be connected

3G/4G network card/data card can be inserted, SIM card plug and play

Support 4G to network port to WiFi function

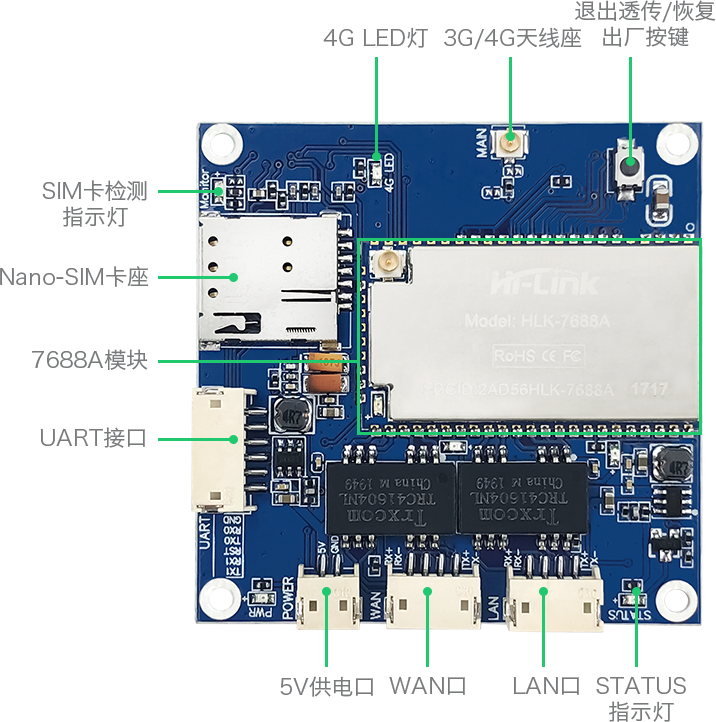

Hardware description

HARDWARE DESCRIPTION

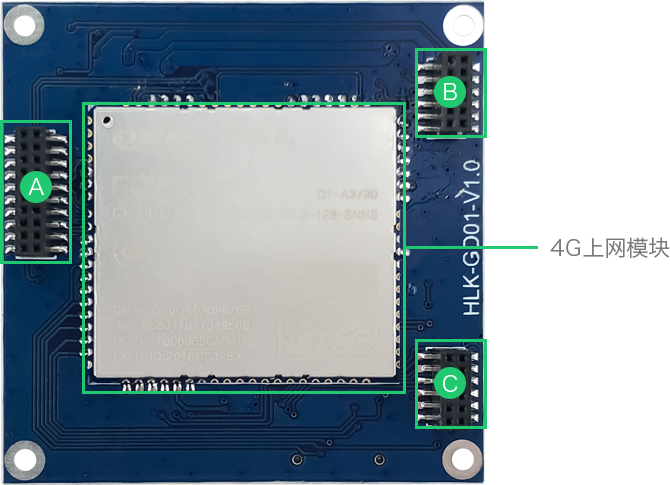

    A corresponding pin description in turn (see product specifications for details)

    Pin description corresponding to B in turn (see product specification for details)

    Pin description corresponding to C in turn (see product specifications for details)

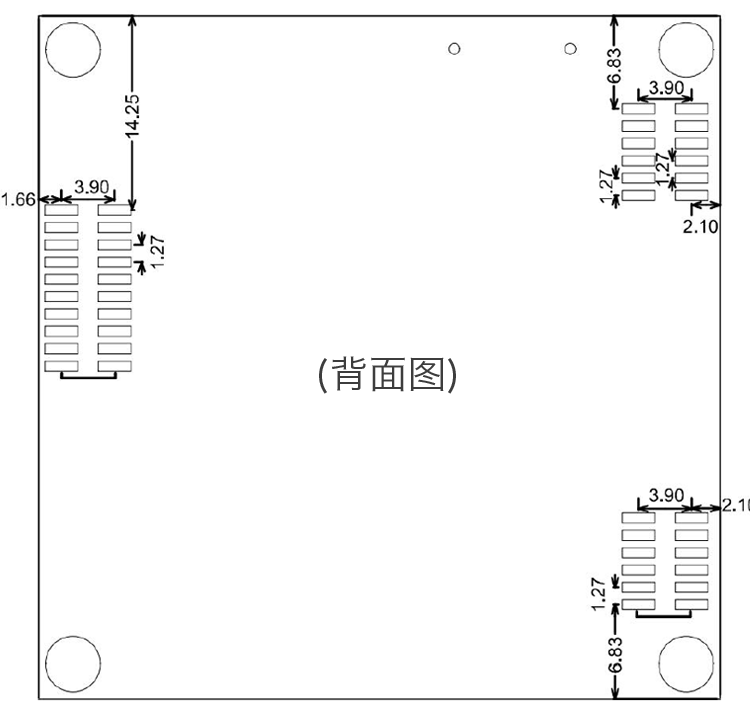

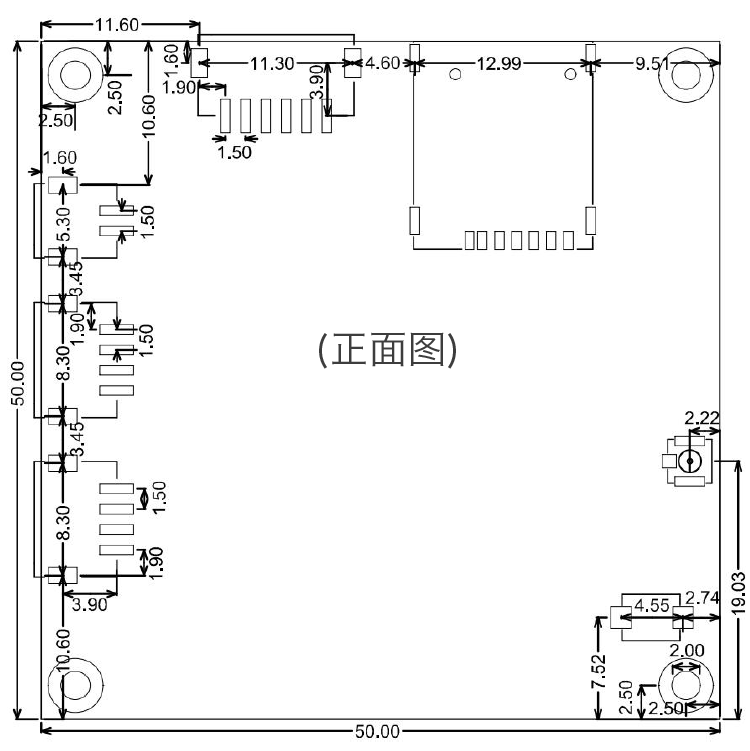

Size description

DIMENSIONS

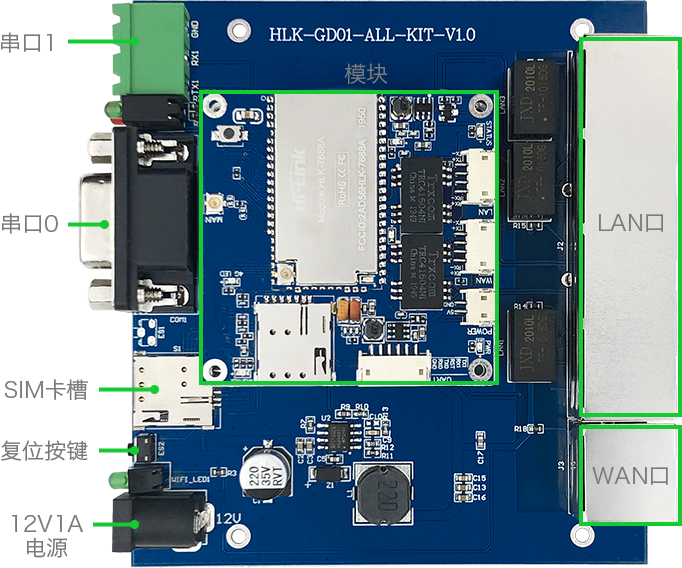

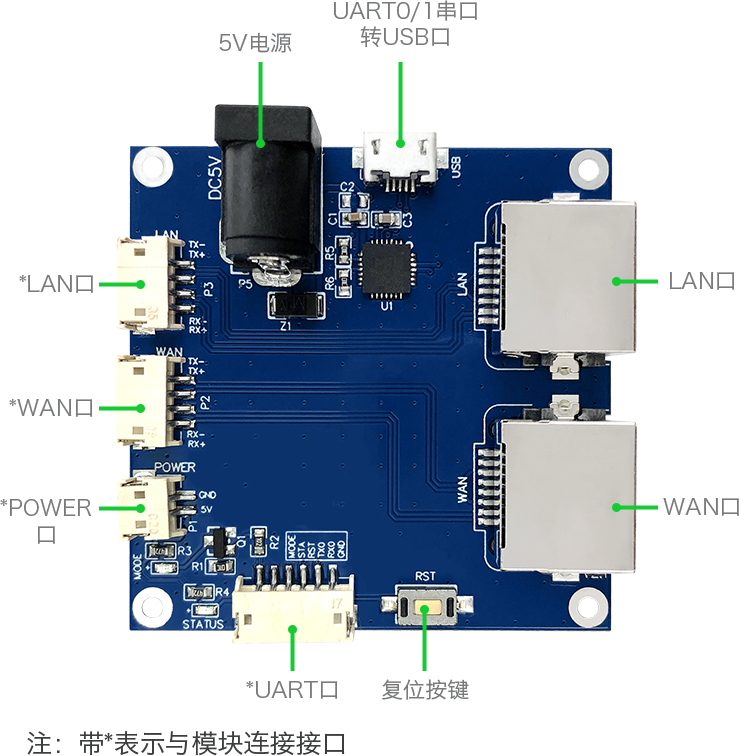

Test board description

TEST SUITE DESCRIPTIONS

Indicator light description

LED DESCRIPTIONS

SIM card detection indicator

After the module is powered on, the device will automatically detect whether a SIM card is inserted. If a SIM card is inserted, the light is off, otherwise the light is on. (Since some customers’ SIM cards are cut by card cutter/manually cut, it may not be recognized by the device.)

Network indicator

When the device uses 3G/4G data to go online, the indicator light will be on. If you use an external network such as broadband to access the Internet, or the traffic runs out, the indicator light will go out.

WAN port/LAN port indicator

    When the WAN port/LAN port of the device is connected to the network cable, the light will always be on or flashing.

STATUS light status display description

Network port/4G working mode

    When the router's WAN port is connected to the network cable to obtain the IP of the superior router, the router will automatically disconnect the 4G network and use the network port to access the Internet, saving 4G traffic card traffic; when the WAN port is not connected to the network cable, the router will automatically turn on the 4G Internet function.

common problem

COMMON PROBLEM

Question 1: Where can I download the product information?

After placing an order, you can leave your email address to the customer service, or directly visit the official website of Hlktech Electronics www.hlktech.com and click "Product Center" to download the corresponding product information

Question 2: Does the module support secondary development?

The module adopts the MT7688A+EC20 solution, and currently only supports function customization related research and development.

Question 3: What is the operating voltage/current of the module?

The module is powered by 5V. Please ensure that the voltage is stable when supplying power. Overvoltage will cause the module to burn out. (Note: The default power supply of the development board is 5V1A)

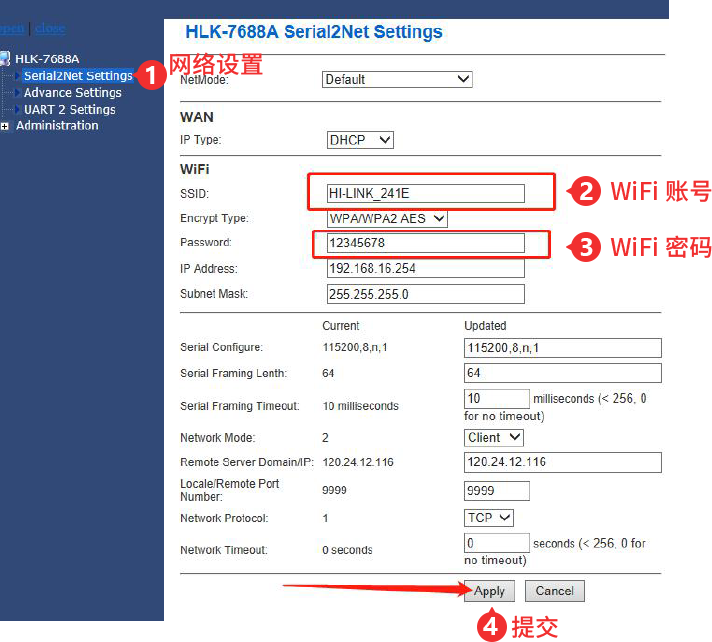

Question 4: How to modify the wifi account and password of the module

The default IP of the module's backend web page is 192.168.16.254, and the initial account/password are both username and password admin. (See the figure below for details)

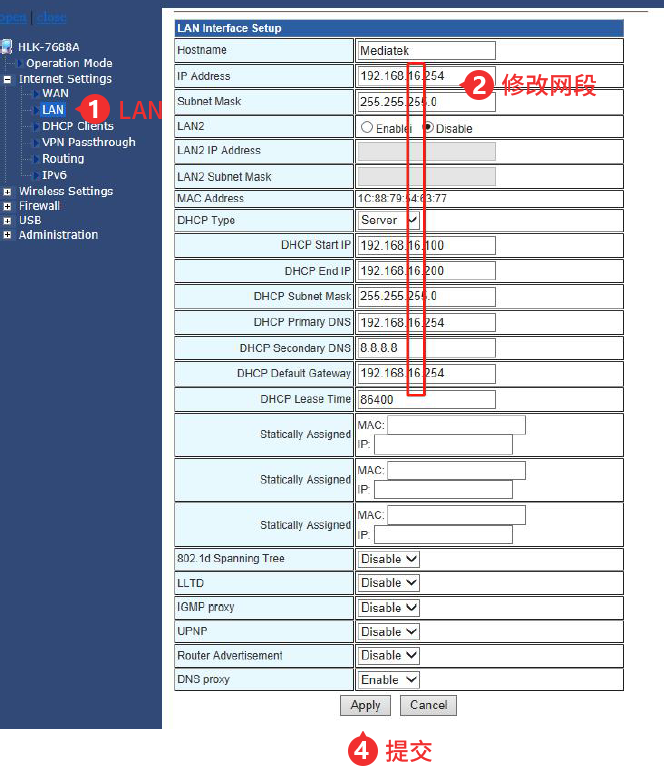

Question 5: How to modify the LAN segment of the module

After entering the module background management page, modify and save according to the following figure:
